特徴

仕様

Type: Flexographic Printer

Applicable Industries: Food Shop, Printing Shops

Condition: New

Plate Type: Letterpress

Usage: Paper Printer, Plastic Bag, Non Woven Bag, Paper Bag, supermarket hand bag

Automatic Grade: Automatic

Color & Page: Multicolor

Voltage: 380v/220v

Dimensions(L*W*H): 6800x2100x3500mm

Weight: 7500 KG

Warranty: 1 Year

Key Selling Points: High-accuracy

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Motor, Pump, Gear, PLC, Gearbox

Structure: CI

After-sales Service Provided: Engineers available to service machinery overseas

lifting and lowering: pneumatic loading and unloading

doctor blade: chamber doctor blade

Keyword: Flexografic Printing Machine

ink running: ink pump

shaft: air shaft

tension: auto tension control

color: 6 colors

material: paper, film, non woven fabric

frame: central drum

基本情報

お支払配送条件

Packaging Details: Film packing or wooden packing according to client choose

Supply Ability: 20 Set/Sets per Month

製品の説明

Product Description

6 colors High Speed Central Drum Plastic woven bag Flexo Printer flexographic printing machine

This central impression （central drum）flexographic printing machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag, leather, glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, non-woven bag, vest bag and clothes bag, etc.

Printing width Item

600mm

800mm

1000mm

1200mm

1400mm

1600mm

1800mm

2000mm

Printing color

6 （4+0），additional choose (1+5,2+4,3+3,)

Printing length

7.5”-40”/7.5”-50

Thickness of plate

1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm
Customized is available

Heating method

Electricity heating

Max.oven temp

Max. 80℃(room temp. 20℃）

Web fixing method for un/rewinder

Safety chuck+ Air expanding shaft

Printing plate lifting system

Hydraulic/pneumatic press control

Menchanical speed

160m/min

Printing speed

80m-150/min

Anilox cylinder

Ceramic anilox roller

Longitude:±0.15mm,Transverse±0.15mm

Rewinder/UnwinderDIA

φ600mm~φ1000mm

Master motor

3.7kw

5.5kw

7.5kw

11kw

Unwinder motor

1.1kw

1.5kw

2.2kw

3.0kw

Rewinder motor

1.5kw

2.2kw

3.0kw

3.7kw

Electrical heater

14kw

16kw

20kw

22kw

24kw

26kw

28kw

30kkw

Blower of heater

1.5kw*2

1.1kw*3

1.5kw*3

2.2kw*3

Blower of nature wind

0.75kw

1.1kw

1.5kw

Inking motor

370w

750w

Weight

7000kg

7500kg

8000kg

8500kg

9000kg

9500kg

10000kg

10500kg

Master Power

45k

50kw

55kw

60kw

65kw

70kw

80kw

85kw

Production Process

Sample pictures

Details Images

Feeding Material Part

1.Automatic stop machine when break the material.

2.Single unwinding system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.

3.Roller core diameter: 76mm

4.Discharge maximum diameter: 1000mm

5.Pneumatic load and unload material.

Printing Sections

1.Printing consists of: central drum, plate roller, ceramic anilox roller, single doctor blade and chamber doctor blade. 2.Plate roller circumference: 300-800mm. 3.Print material: resin plate or rubber plate. 4.Transmission: central drum with big gear drive the printing station.

Drying System

1.Use hot air drying, intelligent constant temp control.

2.Drying units are installed after the printing units, and air volume can be adjusted by independent damper/panel.
3. The drying system after the printing it is about 54kw.

Rewinding Part

1.Single unwind system, equipped with air shaft , EPC and automatic tension control system with magnetic brake.

2.Roller core diameter: 76mm
3.Discharge maximum diameter: 1000mm
4.Central type rewind

5.Pneumatic/hydraulic load and unload to transport and loading material.

PS: Above configurations just for your reference. Know more details please connect with us! Thanks and best regards!

Company information

Certifications

After Sales Service

Installation:
The seller will send total 1 engineer for ci flexo machine, test the production line and train customers’ workers in buyers’ factory. It will take one week for whole installation and training.
The buyer should cover engineers’ salary, visa cost, round air tickets, accommodations, transportation in buyers’ country, food, medical care, safety cost, and related cost happens in buyers’ country. Also, the buyer should prepare enough labor, electric wire outside the control panel and tools for installations.

Engineer’s Salary:
USD 100/day, depending on how the engineer make you satisfied. The date he arrives and leaves shall be counted as paid day. The dates which wait for spare parts coming on seller’s duty are exclusive of salary paying.

Warranty:
Warranty period for the delivered equipment will be 12 month after the date customer receive the machine. In case any item proves to be defective and the damage is confirmed by seller’s technicians within this period, the seller will at their choice either send engineer to repair or supply a new one for replacement free of charge on the basis of CNF delivery.

The above item does not include the parts, which have regular spares or the parts damaged from normal wear, abnormal operation,
improper maintenance and inadequate civil works. The seller is not liable for any production loss under any circumstances.

Packing：
As per export standard, they will also be treated before delivery against damage and rusting.

FAQ

1.Are you a factory or trading company? A: We are a factory, the real manufacturer not trader.
2.Where is your factory and how can I visit it? A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train)
3.What is your after-sale service? A: We have been in flexo printing machine business for many years, we will send our professional engineer to install and test machine. Beside, we can also provide online support, video technical support, matching parts delivery, etc. So our after-sales services is always reliable.
4.How to get machines price? A: Pls provide following information: 1)The color number of printing machine; 2)Material width and effective print width; 3)What material to print; 4)The photo of printing sample.

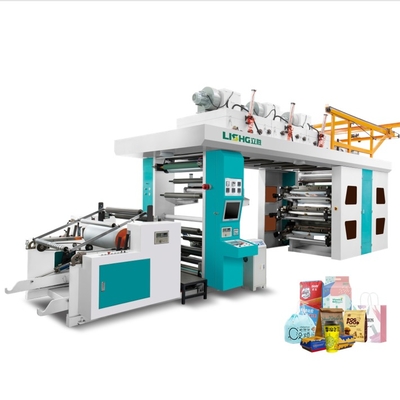

Grocery 4 color ci fabric pe plastic bags pp woven cup box machine flexo package printing printer four paper machine
