♦Description♦

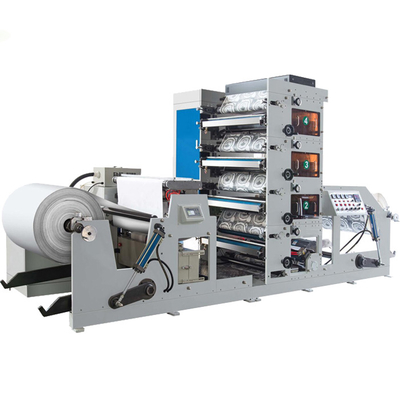

1.Good price roll ro roll 4 color flexo printing machine for paper cup is fully can complete the whole process of feeding, printing, varnishing, drying, laminating, die-cutting, rewinding and sheeting. It is high economic benefit and non-polluting ink.
2.Paper cup flexo printing machine belongs to flexographic printing machine. The biggest reason why it used for high-grade paper cup printing is its ceramic anilox cylinder, which make printing on paper more precise and finer.
3. It is the ideal choice for factory to print many kinds of paper cup, coffee cup, paper bowl, paper box, etc
4. The paper cup flexographic printing machine is very suitable for standardization. Flexo printing machine through the many plates holes in cylinder to convey the ink, once you choose the right roller in the printing process, the color change little, to some extent,can reduce the dependence on operator experience. And through this ink transmission, color is well-distributed.
5. The paper cup flexography printing machine also can combine with other printing machine like Gravure printing and screen printing machine, for exquisite label printing work.
6.At last, the label printing press is environmental because of its UV ink or Water ink, non-toxic ,colorless and tasteless, accord with sanitary requirement of FDA.
♦Technical parameters♦
| Printing speed | 50m-60m/min |
| Printing color | 4 colors (1/2/3/4/5/6/7/8 color for option) |
| Print max width | 850mm |
| Unwind roll width | 860mm |
| Unwind roll diameter | 1300mm |
| Rewind roll max diameter | 1300mm |
| Printing length | 175-370mm |
| Registering accuracy | ±0.15mm |
| Voltage | 36kw |
| Air press | 0.6MP |
| Weight | 4500kg |
| Dimension | 4500X1800X2250mm |
♦Features♦
1.Adopt high quality ceramic anilox cylinder to transfer the ink.
2.The printing unit can register in 360degress;each printing unit can mesh roller and improve the printing efficiency.
3.Each printing unit equips with IR dryer.
4.Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic inverter motor .
5.Unwinding adopts auto tension controller.
6.Each printing unit adopts 360° adjustment, it can independently gear and loosen,so other printing units can continue to print.
7.Equipped with web guide for tracking.
8.The ink rollers will be separated from the printing rollers,and keep running when the machine stops.
9.The main motor is adopted the import stepless, regulation of frequency conversion.
10.The machine can finish material-feeding, printing,rewinding in a lump.It is an ideal machine for printing note and top-grade paper cup.
♦Detail pictures♦
1) Hydraulic lifting system
2)Web guide system
3) Printing unit
4) Hydraulic rewinding
5) Tension control
♦Standard Configuration♦
1) 2 sets Printing roller
2) 2 sets ceramic anilox roller (made in shanghai)
3) 5 group * 3 sets printing rollers = 15 pcs (buyer offer dimension)
4) Transducer(2 pcs)
5) One unwinding tension controller
6) One rewinding tension controller
7) 1 pcsElectromagnetism valve
8) Main Motor
9) Button
10) All low-tension electrical
11) Web guiding for correcting edge
Other paper cup making machine:
Best Price Medium Speed Automatic Paper Cup Making Machine
| Package detail | Wooden case/ Good price roll ro roll 4 color flexo printing machine for paper cup |
| Package size | 4.9m×2.2m×2.6m |
| Gross weight | 4600kg |
1. Pre-Sales Service |
2. After-Sales Service |
3.Package & Delivery |
|
* Inquiry and consulting support. * Sample testing support. |
* Training how to install the machine, training how to use the machine.
|
Our service team will pack goods under export standard, and prepare delivery in time as agreement.
|
Technical Support |
||
|
Our service team will give you 24 hours support, and technical guidance by email, telephone, what's app and fax for regular maintenance and support. |
||
Zhengzhou Perfect Company Ltd. is professional manufacturer of flexographic printing machine, drinking straw machine and die cutting machine for more than 15 years.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Q: Do you factory accept customized configuration?
A: Yes. About electric parts, you could choose SIEMENS, Schneider, Delta and etc. For the machine device, web guiding, vedio monitor, pneumatic-unwinding loader,elctric-rewinding unloader, slitting station ratary die cutting station, lamination and waste rewinding are optional. For the specific combination, pls contact us.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
