Print Method | Two Epson 5113 or two DX5 | Out Size | 6220mm*2950mm*1300mm(6m) |
Outputting Resolution | 360×1080dpi/720×720dpi | The weight | 800KG(6m) |
Printing Speed | 4 Pass 80-120 pcs/hour(A4 Size) | Image Type | file format :JPEG/TIFF/BMP color mode: RGB/CMYK |
Plate | 550*450mm Garment printing table, 1300*1500mm infinite length | Ink Colors | C M Y K |
The Printing Height | 80mm can be adjust | Ink Type | Weak solvent, water-based, textile, coating |
Platform Qty. | 450×550mm 6m(16pcs),9m(28pcs),12m(38 pcs) 1300×1500mm infinite length 6m(4pcs),9m(6pcs),12m(8pcs) | Software | Weiliyin |
Suitable for the fabric | Knitted or woven cotton,linen,silk,wool,cashmere,chemical fiber,nylon,etc. | Input Power | AC 220V 50Hz 1KW |
Working Environment | Temperature:15-35°C Humidity:40%-60% | Data Interface | Standard USB interface |
Fit Material | Garment,cutting pieces | Operation System | WIN7 |

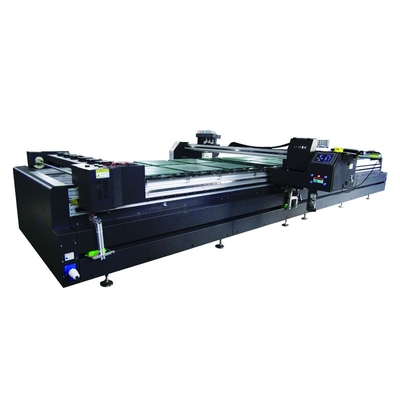

Our digital printer fit the materials, the knitted or woven cotton, linen, silk, wool,
cashmere,chemical fiber,nylon,etc. We provide the samples T shirt free and welcome to connect with me anytime !
1. Without edition, printer fast, low cost, a print, instant, low-power, pollution-free production technology, to break the limitation of traditional production of color and printing, can print any type.
2. Printing white+color printing composite process integration design, brunet fabrics printing cost reduction, improve the capacity.
3. Have the origin flash spray function, guarantee in the protection of nozzle, in the absence of any task in the process of software support to print flash spray function back to the origin (selection). Off to ensure that won’t appear in the process of printing ink accidents, avoid customer material loss.
4. Machines have jump white function, can save more time to the user.
5. Print in emergency can use software comes, the features of the suspension can wait to solve the problem and then print, thus avoiding the user material damage.
All items of our products and related tests as follow :
| HJD-A Automatic Screen Printing Machine | A1 Oval Automatic Screen Printing Machine |
| A2 Round Automatic Screen Printing Machine | |
| A3 Manual Suction Screen Printer | |
| A4 Plate Type Digital Textile Printer | |
| A5 Flat Automatic Screen Printing Machine | |
| HJD-B Screen printing table | B Screen printing table |
| HJD-C Dryer | C1 Far Infrared Automatic Moving Dryer (Common) |
| C2 Far Infrared Automatic Moving Dryer(High-Grade) | |
| C3 Quick Flash Dryer | |
| C4 High Temperature Oven | |
| HJD-D Beater | D1 Vertical Beater |
| D2 Ink Mixer | |
| D3 Manual Ink Mixer | |
| HJD-DP Digital Printer | DP01 Digital Conduction Belt Printer |
| DP02 Plate Type Digital Textile Printer | |
| DP03 Small Flatbed Digital Inkjet Printer | |
| DP04 Digital Textile Belt Printer | |
| DP05 High Grade Roll Heat Transfer Machine | |
| HJD-E Screen Stretching Machine | E1 Manual-layering Screen Stretching Machine |
| E2 Manual-clamp Screen Stretching Machine | |
| E3 Pneumatic Screen Stretching Head | |
| E4 Chain Wheel Screen Stretching Machine | |
| E5 Mechanical Screw-Type Stretching Machine | |
| E6 Large-size Automatic Stretching Machine | |
| E7 New Style Motor-driven Stretching Machine | |
| HJD-F Automatic Emulsion Coating Machine | F Automatic Emulsion Coating Machine |
| HJD-G Screen Frame Dryer | G1 Horizontal Screen Frame Dryer |
| G2 Oriented Plate Screen Frame Dryer | |
| HJD-H Exposure Machine | H1 Micro-computer Exposure Machine |
| H2 Common Exposure Machine | |
| HJD-I Screen Washing Tank | I Screen Washing Tank |
| HJD-J Heat Press Machine | J1 Manual High Pressure Heat Press Machine |
| J2 Pneumatic Mark Heat Press Machine | |
| J3 Double-positon Semi-automatic Heat Press Machine | |
| J4 Double-Position Heat Transfer Printing Machine (pneumatic) | |
| J5 Automatic Pneumatic Heat Transfer Machine | |
| J6 Garment Embossing Machine | |
| J7 Mechanical 4-position Heat Press Machine | |
| J8 Large Semi-Automatic Double Position Heat Transfer Machine | |
| J9 Multifunction Printing Machine | |
| J10 Hot Transfer Printing Machine | |
| J11 Fusing Press (Hot Stamper) | |
| HJD-K Tunnel Dryer | K1 High Grade Tunnel Dryer |
| K2 Common Tunnel Dryer | |
| K3 Digital Printing Dryer | |
| HJD-L Curing Machine | L Curing Machine |
| HJD-M Grinding Scraping Machine | M Grinding Scraping Machine |
| HJD-N Sewage Treatment Equipment | N Sewage Treatment Equipment |
| HJD-O Drying Rack | O Drying Rack |
| HJD-P Screen Frame | P Screen Frame |
| HJD-Q Personalized Manual Screen Printing Machine | Q1 4 Color Station Double Wheel |
| Q2 Fast Clip Manual Stretcher | |
| Q3 Exposure unit& Vacuum Exposure unit | |
| Q4 Small Flash Dryer | |
| Q5 Small Frame Drying Cabinet | |
| Q6 Small Tunnel Dryer |
Every picture has interlinkage, you can choose your interested one to click it.
