ホーム /製品/布のインクジェットプリンター/Hotels wide format inkjet printer manufacturer led gen5 hybrid uv printer

Hotels wide format inkjet printer manufacturer led gen5 hybrid uv printer

1 Set
MOQ
$36,000.00(1 - 4 Sets) $30,000.00(5 - 9 Sets) $10,000.00(>=10 Sets)
価格
Hotels wide format inkjet printer manufacturer led gen5 hybrid uv printer
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Condition: New
Dimensions(L*W*H): L4770mm*W1690mm*H1400mm
Plate Type: UV HYBRID PRINTER
Weight: 2600 KG
Automatic Grade: Automatic
Color & Page: Multicolor
Usage: flatbed printer
Voltage: 220V
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Warranty: 1 Year
Print Dimension: 2500MM
Ink Type: UV Curable Ink
Key Selling Points: High Productivity
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Engine, Pump, board
After-sales Service Provided: Engineers available to service machinery overseas
Software: photoprint
Print head: RICOH G5/RICOH G6/TOSHIBA/KONICA
Printing Size: 2500MM
Printhead arrangement: C M Y K LC LM Lc Lm W V optional
Print Speed: 15-80sqm/hr
Printhead number: 2-8
Life of printed image: 10years(outdoor),20years(indoor)
Media Thickness: 0-100mm, higher can be customized
Keyword: hybrid uv printer gen5
基本情報
お支払配送条件
Packaging Details: Standard wooden case packaging
製品の説明
Product Description

Wide format printer manufacturer led hybrid uv printer gen5


Printhead
RICOH GEN5/GEN6
Printhead 2-8 units
Image Quality
Bright picture,
fresh as before.
Application
Wide range of applications to
meet a variety of needs.

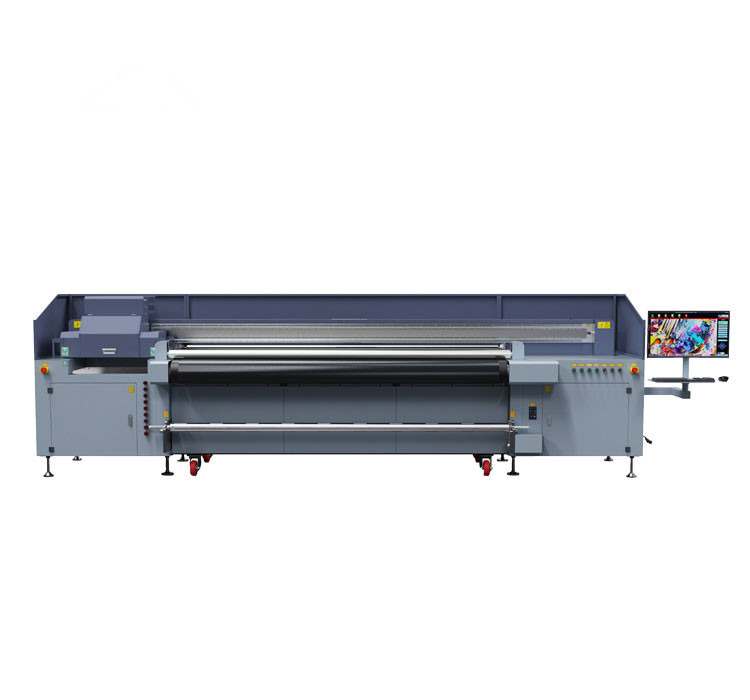

YC3200HR UV Hybird Printer

①UV LED Lamp ②Anti-static,Anti-crash ③TAIWAN HIWIN guide rail
④Industrial Printhead ⑤Universal wheel ⑥Top Heavy Rubber Roller
Product Model
YC3200HR
Printhead Type
RICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number
2-8 units
Ink Characteristics
UV Curing Ink (VOC Free)
Lamp
UV LED lamp
Printhead Arrangement
C M Y K LC LM W V optional
Guide Rail
TAIWAN HIWIN
Working Table
Anodized aluminum with 4-section vacuum sucking
Printing Width
3200mm
Coiled Media Diameter
200mm
Media Weight
80kg Max
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm, higher can be customized
Print Resolution & Speed
720X600dpi
4PASS
15-33sqm/h
(GEN6 40% faster than this speed)
720X900dpi
6PASS
10-22sqm/h
720X1200dpi
8PASS
8-18sqm/h
RIP Software
Photoprint Edition/RIP
Media
Wallpaper, flex banner, glass, acrylic, wood board, ceramic, metal plate, PVC board, corrugated board, plastic etc.
Media Handling
Automatic Release/Take Up
Machine Dimension
5610*1720*1520mm
Weight
3000kg
Safety Certification
CE Certificate
Image Format
TIFF,JPEG,Postscript,EPS,PDF etc.
Input Voltage
Single Phase 220V±10%(50/60Hz,AC)
Working Environment
Temperature: 20℃-28℃ Humidity: 40%-70% RH
Warranty
12 months exclude the consumables related to ink, such as ink filter, damper etc
Above specification subject to change without notice beforehand



Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resolu-tion.It is suitable for longtime working,24 hours running.




LED Cold Light Curing
More economical and environmen-tal than mercury lamp,material adaptability more widely,energy saving and life longer(up to 20000 hours).




High Qulity Stable Printing Platbform
Extra-wide and ultra-high precision print-ing platform.




High Mute Drag Chain
Germany imported linear guide rail and Germany mute drag chain,low noise, movement more steady, printing more steady, prolong the machine life.
High Qulity Big Steel Roller
Secondary Cartridge
THK guide rail
Printing Samples
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolu-tion cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V All three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Plastic
Mouse Pad
Ceramic
Wood
Acrylic
Lamp-box fabric
Wall Background
Car Sticker
Advertising Cloth
Factory&Workshop

Jinan Yingcai Digital Technology Co., Ltd

Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City,Shandong province, China. The independent plant covers more than 20,000 square meters, with six professional production lines to support annually sales volume.
Winscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed
printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.
Winscolor digital printing machine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, andstrive to create the best quality UV digital printing machines for our customer, and some comprehensive solutions accor-ding to different demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry.
FAQ
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.

3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4.How about the maintance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.

5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driverboard, control board, motor, etc, except the consumables, such as ink pump, print head, ink filter, and slide block etc.

7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Team viewer. Whenever you have questions to the machine, you can contact our technician or me directly.

8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
