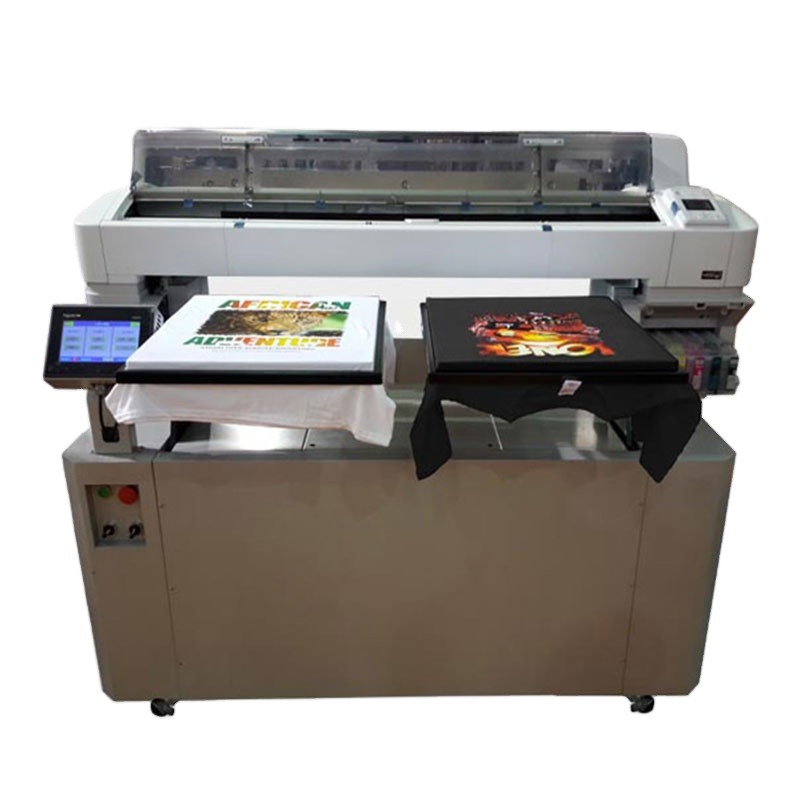

Polar-Jet t shirt printing machine is a newest created Industrial DTG direct to digital apparel printer. t shirt printing machine was built under newest SureColor printing technology, 360nozzle per line, total
3600 nozzle, variable ink droplet technology to get a grayscale printing result, Air negotive pressure system go with individual keep wet cap station to anti head clog. t shirt printing machine with
Wasatch professional color raster RIP to get a vivid printing result on light and dark underbase. Combine with our IPPS control system to get a reliable quality thanks to the top industrial configuration as French
Scheider PLC controler, Touch screen, Fuji film 750W AC servo motor, Dual ball screw and THK Linear rail. Compare with Original SureColor t shirt printing machine , Polar-Jet inkjet printer is faster,
super printing size, industrial made and also costless. Polar-Jet industrial inkjet printer is the first choice to lead you get the industrial DTG printing.
|
Polar-jet industrial t shirt printing machine |
||
|
Print head |
Newest Advanced MicroPiezo Print Head Variable Size Ink Droplet Technology — Smallest droplet size of 3.5 picoliters |
|
|
Printing speed (40*55cm area) |
720*360dpi |
200pcs shirt / Hour |
|
720*720dpi |
160pcs shirt / Hour |
|
|
720*1440dpi |
100pcs shirt/ Hour |
|
|
1440*1440dpi |
50pcs shirt/ Hour |
|
|
Color channel setting |
Optional choose |
|
|
Color management |
ICC curve |
|
|
Max. Printing size |
1118mm*500mm |
|
|
Pallet size |
520*500mm standard shirt pallet*2pcs |
|
|
Printing Direction |
Uidirection / Bidirection |
|
|
Ink dot jet frequency |
1Hz-2000Hz optional |
|
|
Carriage drive type |
DC servo motor |
|
|
Table drive type |
AC servo motor |
|
|
Guide type |
Linear rail |
|
|
Ink dot type |
1bits, 2bits, dark, halfton, real time |
|
|
Fire type type |
Rand, fog, wave, 2D |
|
|
Head maintainance type |
Wet-cap system / Auto flash system |
|
|
Control type |
Computer Intelligent & PLC controller |
|
|
Printing resolution |
720*360dpi / 720*540dpi/ 720*720dpi/ 720*1080dpi
720*1440dpi / 720*2160dpi/ 720*2880dopi |
|
|
Color Ink Tank Volume |
700ml cartridge * 4pcs |
|
|
White ink tank volume |
700ml Cartridge supply |
|
|
Ink type |
DTG ink/ sublimation ink/ reactive ink/ discharge ink/ eco solvent ink/ CTS ink. |
|
|
Ink process |
Filter system+white ink shaking system+white ink circulation system |
|
|
Printhead Protection |
Intelligent Self Protect System |
|
|
Power |
110-220V 50-60HZ 250W |
|
|
Printing Interface |
USB2.0/ USB3.0 |
|
|
Operation System |
Win2000/ WinXP/.Win7 / Win8 |
|
|
Working Environment |
50%humidity, 21-29℃ |
|
|
Printer Size |
L1608mm*W1400mm*H1128mm |
|
|
Shipping Size |
L1700mm*W1450mm*H1200mm |
|
|
Printer N.Weight/G.Weight |
210KG/255KG |
|
Catalog download of t shirt printing machine :http://www.mediafire.com/download/a4dg665jxhwlbua/Focus_Polarjet_industrial_DTG_printer_manual.rar
Oline Video Demo of t shirt printing machine : http://youtu.be/44AOUodn0v4
1.New revolutionary printing technology
Polar-jet t shirt printing machine was built with newest Surecolor printing technology, Mounted with newest advanced piezzo TFP print head. Variable size ink droplet technology,
Smallest drop size 3.5piccolitters and max. 22pl to get a grayscale printing result, 720 nozzle per color X 5 color, total 3600 nozzle, Maximum printing resolution 2880*1440dpi.
4. No chips reset require
We invented chips reset system let you forget the problems of reset the ink cartridge chips, chips can not be detected... also 700ml big ink tank can reduce you job of refilling.
5. TCP/IP Ethernet cable interface
Print via TCP/IP Ethernet cable let the data processing faster than traditional USB 2.0/3.0 way
6. Supported by Wasatch professional Image raster RIP software
Wasatch SoftRIP helps users achieve superior color accuracy, high production speed, variable data customization, spot matching and cost savings with direct-to-garment
t shirt printing machine , support ICC revise, ICC maker, Custom ink channel setting. Printing to dark garments has never been easier! With Wasatch's new Auto-Generation features
selected, white ink will automatically be printed as an underlay of your image. Use the Wasatch Tracer to create a mask around your image to easily eliminate any image
data that you don't want printed. This is ideal for images with background colors that are not a solid fill. This will save on ink consumption and keep the "hand" of your
printed shirt light.
7. Intellective PLC control system
Polar-jet t shirt printing machine use the intellective French Scheider brand PLC controller to control all motion signal as forward/backward, online/offline to ensure the reliable working.
11. Duall ball screw & linear rail for Z axis motion
Ball screw and linear rail were mounted at both side of the flatbed to guide the top printer move at Z axis with high precision, ensure the printing table
water level at any positon to get a equal printing quality.
12. Dual ball screw and linear rial for Y axis motion
Printing table motion precision will effect the printing result directly, especially for print on dark underbase, as the rough motion precision will cause the printing
image overlap. Polar-jet i t shirt printing machine mounted with the Japan NSK brand ball screw combine with THk brand rail at both side for a high motion precision with error less than 0.05mm repeatedly.
Warranty
1.We provide 13month warranty since the shipping date, and lifelong technical support.
2.We have completely english instruction video and manual for you.
3.We provide 2 days free online training.
4.We provide good price t shirt printing machine.
5. Engineer fly to your site for final repair if needed.
