特徴ギャラリー製品の説明見積依頼

特徴

仕様

Type: Inkjet Printer

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Condition: New

Plate Type: Flatbed Printer

Usage: Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, wide format uv flatbed printer

Automatic Grade: Automatic

Color & Page: Multicolor mobile case printer

Voltage: 110V/220V

Dimensions(L*W*H): 92*85*55cm uv printer

Weight: 85 KG

Warranty: 13 Months

Print Dimension: A2, 40*60cm uv printer

Ink Type: Pigment Ink

Key Selling Points: High Productivity

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 13 months

Core Components: Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine

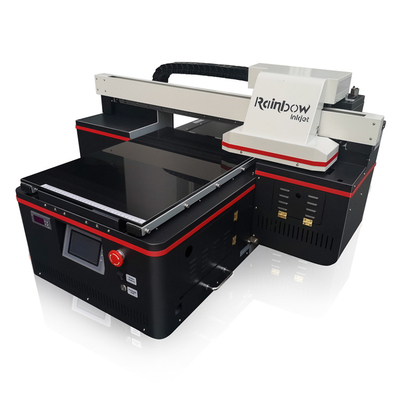

Product Name: Rainbow RB-4060 Plus UV Flatbed Printer

Application: Metal, Plastic, glass, wood, Ceramics,PVC,Steel board,Paper,

Printing Material: pvc,metal, wood, plastic, silicone, leather, acrylic,

Color: YMCK+W+V / CMYK+LCLM+W uv curable ink

Keyword: wide format uv flatbed printer

RIP Software: Maintop/Photoprint

Speed: 120second/A3

Printhead: Double TX800/4720/DX8 print heads

Computer Operating System: Windows 7-10,xp

Picture Mode: PSD/TIFF/BMP/EPS/JPG

基本情報

お支払配送条件

Packaging Details: International standard package wooden box wide format uv flatbed printer

Supply Ability: 500 Set/Sets per Month

製品の説明

Specs of RB-4060 Pro A2 UV flatbed printer
Name	RB-4060 Pro digital uv printer	Working Environment	20 ~ 28 ℃ HR40-60%
Machine Type	Automatic Flatbed UV digital printer	Printer Head	Single/Double DX8 Printer Heads
Features	· The UV light source can be adjusted	RIP Software	Maintop 6.0 or PhotoPrint DX Plus
		· Auto height measurement	Operation System	Microsoft Windows 98 / 2000/XP/Win7/Win8/Win10
		. Power clean	Interface	USB2.0/3.0 Port
		·Print on most material directly	Languages	English/Chinese
		· Ideal for industrial bulk production with high printing speed	Ink Type	UV LED curing ink
		· Finished products is Water proof, UV proof, and Scratch proof	Ink System	CISS Built Inside With Ink Bottle
		· Finished product is suitable for outdoor use	Ink Supply	500ml/Bottle
		· Max printing Size: 40*60cm	Height Adjustment	Automatic with Sensor.
		· With Carry handle	Driving Power	110 V/ 220 V.
		· The printing machine can print white color and 3D emboss effect	Power Consumption	500W
Materials to Print	· Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper,	Media Feeding System	Auto/Manual
Materials to Print		·TPU, Leather, Canvas, etc	Ink Consumption	9-15ml/SQM.
UV Curing System	LED UV lamp (Water Cooling)	Print Quality	True Photographic Quality
Printing Method	Drop-on-demand Piezo Electric Inkjet	Machine Dimension	9710156cm
Printing Direction	Smart Bi-directional Printing Mode	Packing Size	11410976cm
Printing Speed	About 80seconds for 720720dpi, 400mm300mm size	Machine Net Weight	90kg
Max. Print Gap	15cm	Gross.Weight	130kg
Power Requirement	50/60HZ 220V(±10%)<5A	Packing Way	Wooden Case

FAQ:

Q1:What materials can UV printer print?

A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
